AKG RECEVER UNIT PT 40 AND SR 40 ANTENNA

Product Feature : AKG LC82MD Lavalier Microphone and WMS40 Wireless Microphone System

LC82 MD Reference Lightweight Lavalier Microphone:

The AKG LC82 MD Reference Lightweight Lavalier Microphone is part of the new MicroLite Series from AKG which means the size of this particular microphone is very small, yet, the audio quality is still one of the best.

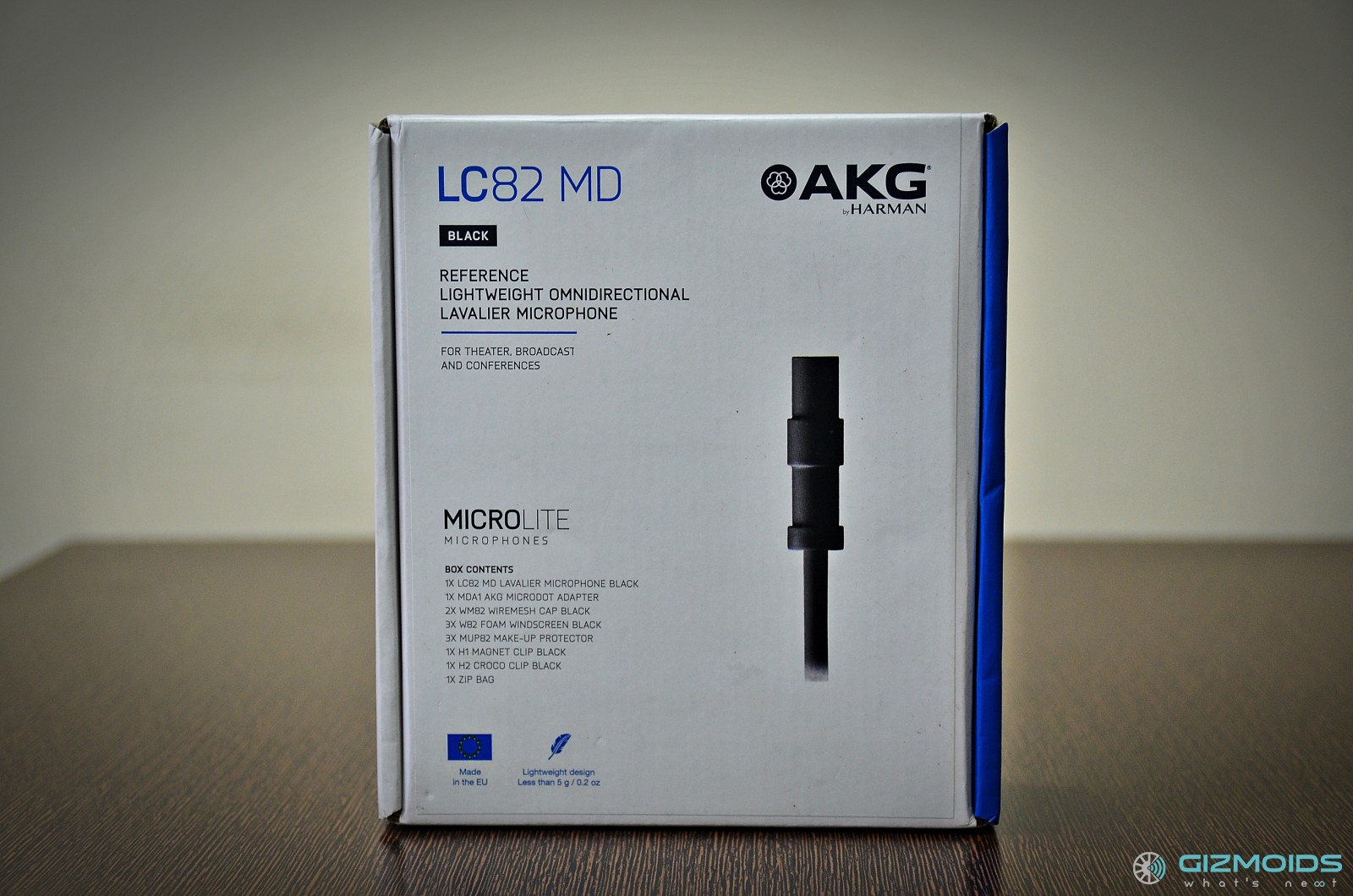

AKG RECEVER UNIT MIC BOX FRONT

The microphone comes in at a price of US $399, so it’s a little bit on the pricey side, but you get plenty accessories and the reliability and assurance of the brand that is AKG. You can have the microphone in 4 different colours – White, Black, Cocoa and Beige. One great feature of this microphone is that it is omnidirectional, which simply means that it will capture sound from all directions, so you don’t have to worry about how you’re wearing it.

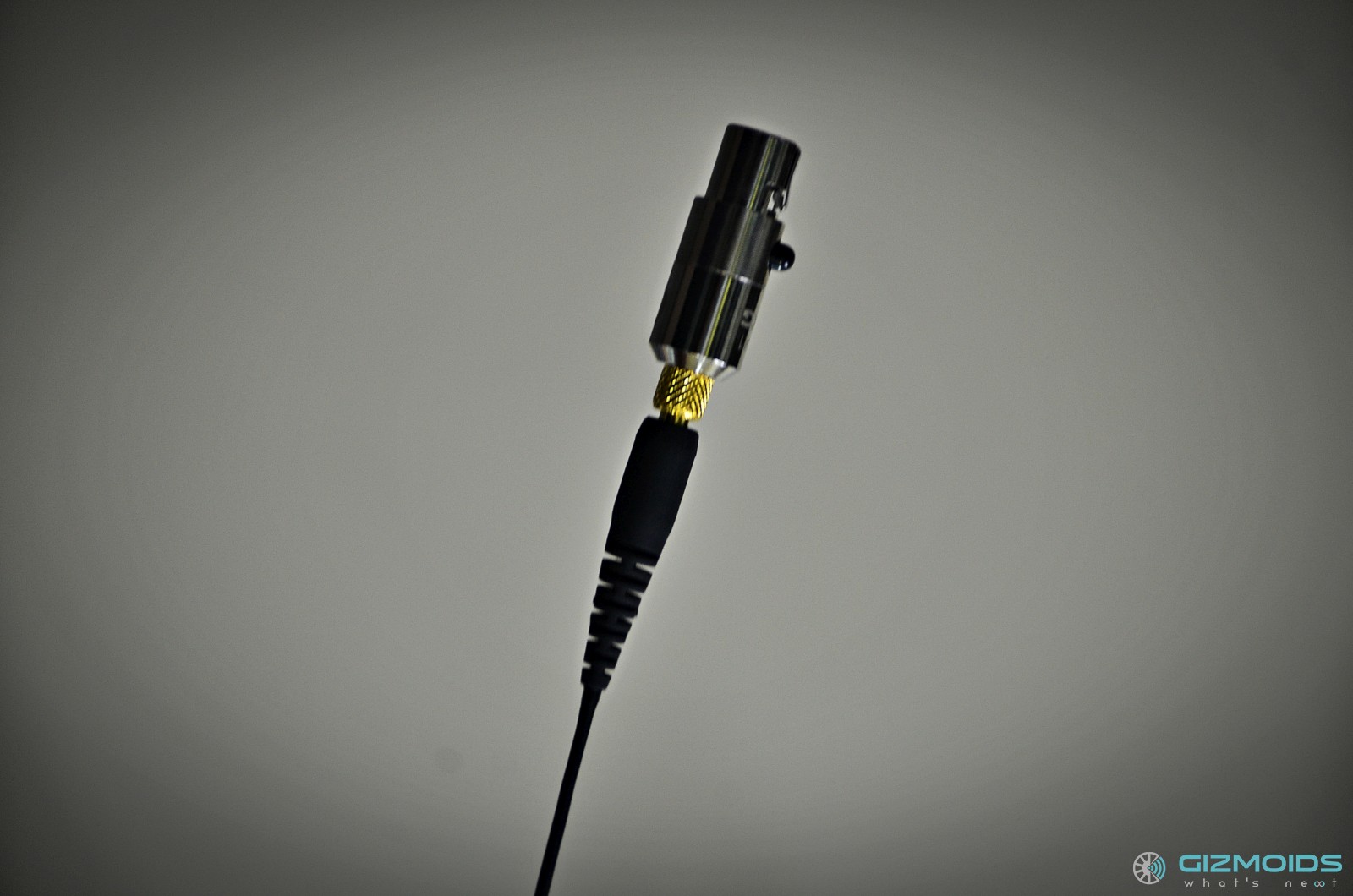

AKG RECEVER UNIT MIC

Some of the highlights of the microphone are;

  • Comfortable Design – The AKG LC82 MD microphone has been designed to be compact so that you can use it for long hours. Just clip it on and you won’t even feel that the microphone is there.
  • Microdot Connector – The Microdot Connector allows it to work with most wireless receivers making it versatile.
  • Moisture Resistant – The materials used to build the microphone have been selected carefully which make it easier to wear even in sweaty or active conditions.
  • EMC Protection – The electrical properties of the microphone allows the user to capture sound without any interference.
  • Different Mounting Options – The microphone is available in 3 different mounting options – Lavalier, Ear-Hook and Headworn.

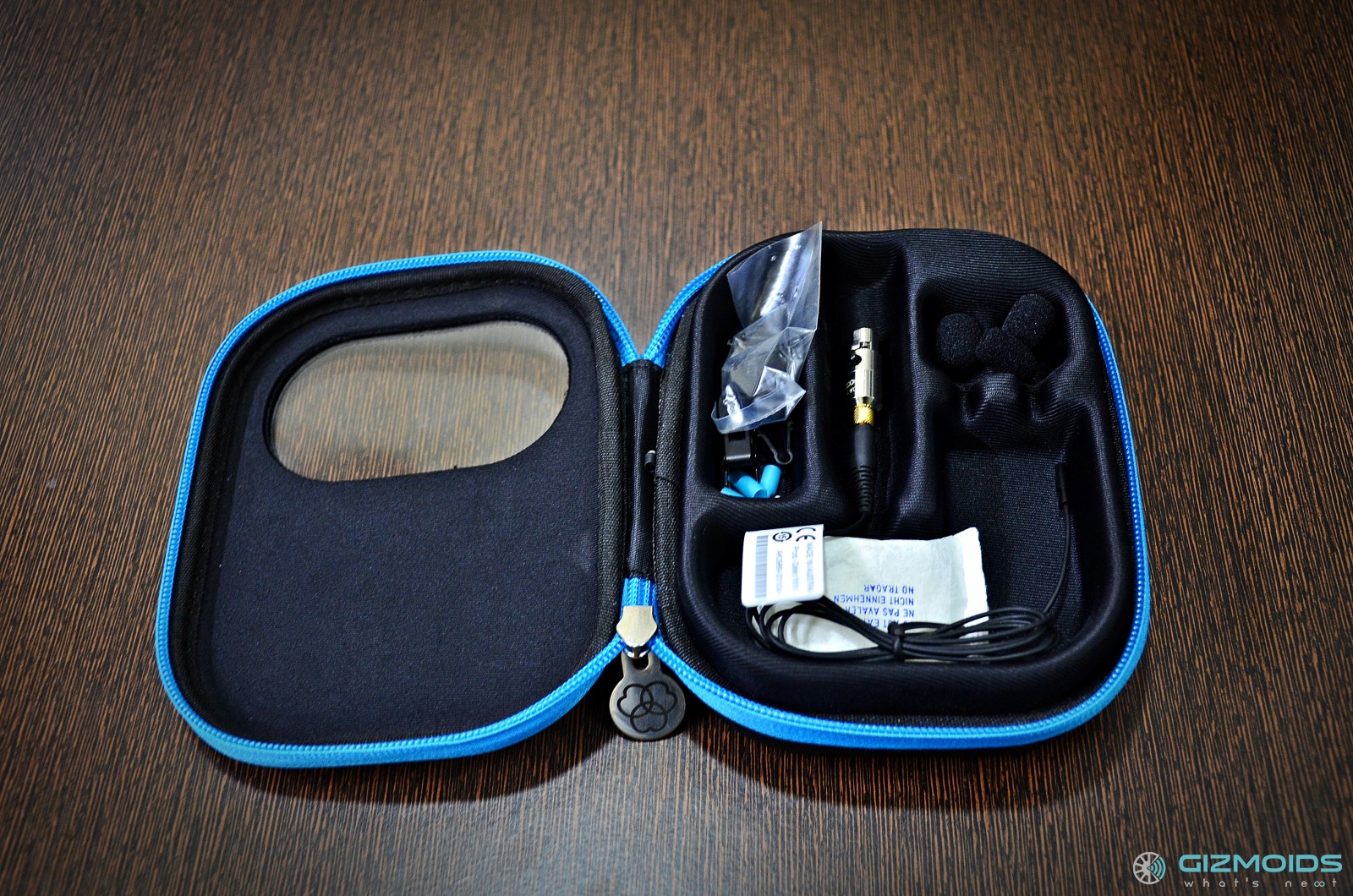

AKG RECEVER UNIT ZIP CASE OPEN

You also get a bunch of accessories with the microphone depending on the colour you purchase;

LC82 MD White/Black LC82 MD Beige/Cocoa
1 x MDA1 Microdot adapter AKG 1 x MDA1 Microdot adapter AKG
2 x WM82 Wiremesh Cap 2 x WM82 Wiremesh Cap
3 x W82 Foam Windscreen 3 x W82 Foam Windscreen
3 x MUP82 Make-up Protector 3 x MUP82 Make-up Protector
1 x H1 Magnet Clip 1 x H3 Croco Cable Clip
1 x H2 Croco Clip 1 x Zip Bag
1 x Zip Bag

AKG also mentions different applications that this particular microphone is meant for and that is Theatre, Broadcast and Conferences and the reason that this microphone is best suited for these applications is because of its size.

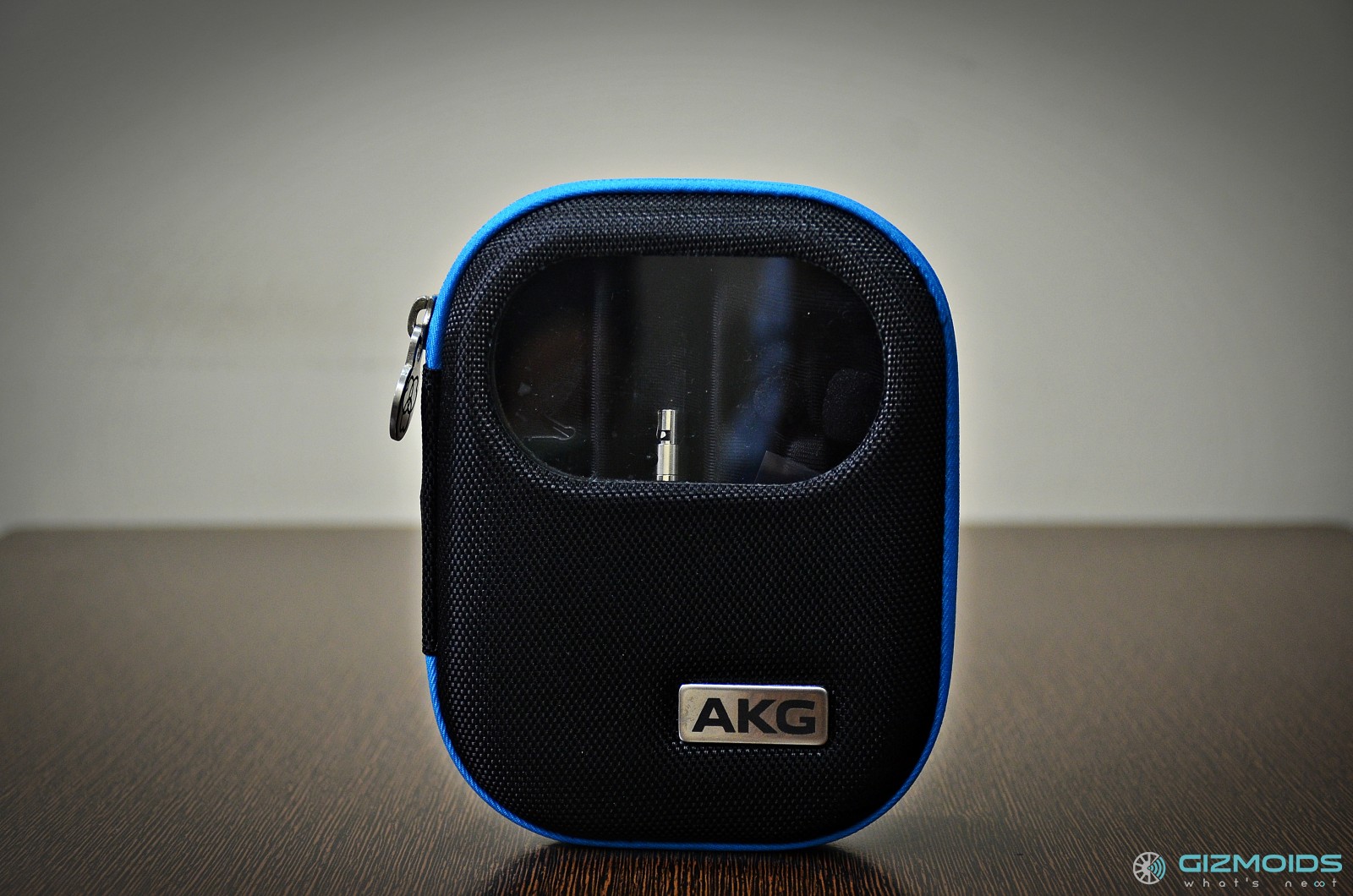

AKG RECEVER UNIT ZIP CASE CLOSE

Check out the technical specifications of the LC82 MD microphone below:

General Audio Frequency Bandwidth 20 to 20000 Hz
Sensitivity 15 mV/Pa
Signal to Noise 63 dB-A
Electrical Impedance At 1 kHz, 5000 Ohms
Self-Noise 31.2 mW
Notes Measurements in working distance (2-3 cm from sound source)
Powering Interface Voltage 3 to 10 V
Dimensions/Weight Length Capsule Only: 7.2 mm
Diameter Capsule Only: 3.6 mm
Net Weight Total including cable: 5.3 g

AKG WMS40 Mini Wireless Microphone Systemà

The AKG WMS40 Mini Wireless Microphone System is a small size, plug and play wireless sound transmission and reception system. This is a complete solution for those who want something compact and simple to use.

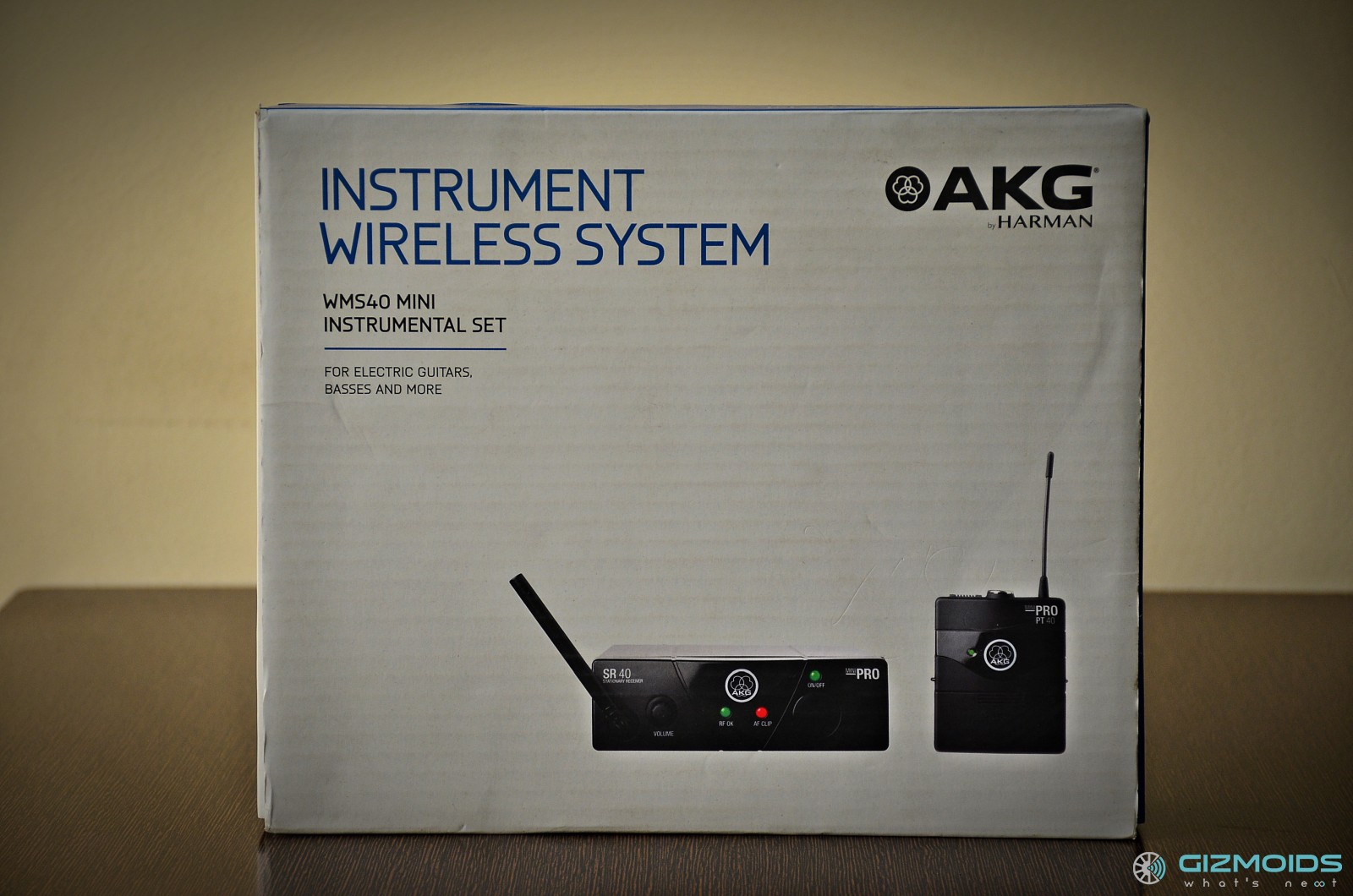

AKG RECEVER UNIT WMS 40 BOX FRONT

The wireless microphone system comes in at a price of US $99 which we think is a bang for your buck considering the components that you get inside the box. You get the following components inside the box;

  • SR40 Mini – This is the sound reception unit. It runs on AA batteries and can be directly plugged into a soundboard to control the various aspects of the sound you’re recording. You can buy this receiver in either a single receiver or dual receiver configuration.
  • HT40 Mini – This is the wireless microphone unit that you speak into.
  • PT40 Mini – This is the sound transmission unit. It comes with a clip on its back so that you can attach it to your belt. It can either be used wirelessly with the HT40 Mini microphone or you can plug in a wired microphone or you can connect this transmitter unit with different instruments.

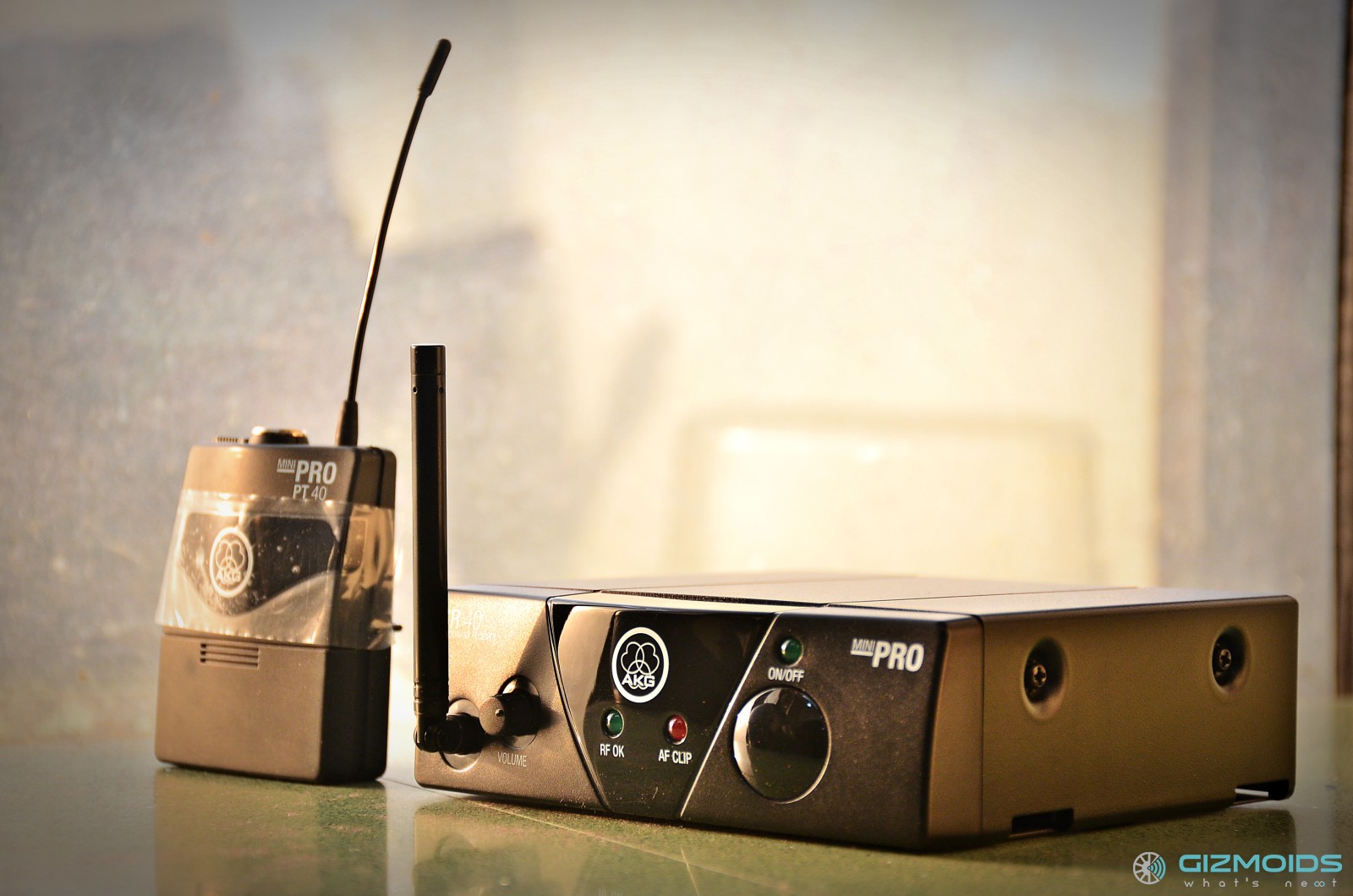

AKG RECEVER UNIT PT 40 AND SR 40 ANTENNA



Some of the highlights of the wireless system are;

  • You get up to 30 hours of playtime with a single AA battery.
  • The transmitter unit, PT40 Mini, is the smallest and lightest in its class.
  • The system is compatible with all the AKG MicroMics.
  • Easy to setup and use.
  • Comes with LED indicators to let you know when the battery’s low.
  • Universal connectors for use with other wireless systems.

The wireless system comes in different configurations depending on your requirements;

  • Vocal – In this configuration, you can get the SR40 Mini either as a single receiver or dual receiver unit with either one or two of the HT40 Mini wireless microphones. The SR40 Mini dual receiver unit can receive sound from 2 different sources at the same time.
  • Instrumental – In this configuration, you can get the SR40 Mini either as a single receiver or dual receiver unit with either one or two of the PT40 Mini transmission units that can be connected directly to an instrument with the included cable. This configuration is meant for transmission of audio wirelessly from the instruments to the speakers.
  • Mix – In this configuration, you get one each of the SR40 Mini dual receiver unit, the PT40 Mini transmitter unit and the HT40 Mini wireless microphone unit. This configuration can be used with both instruments as well as to transmit vocals.
